Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
Simple Collocation:
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
Simple Package:
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
Standard Package:
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
High Package:
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
433MHZ 100MW A :
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry
433MHZ 500MW B:
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433MHZ 500MW Radio telemetry
433MHZ 1000MW C:
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry
915MHZ 100MW A:F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+915MHZ 100MW Radio telemetry
915MHZ 500MW B:
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+915MHZ 500MW Radio telemetry
433MHZ 1000MW :
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry
433MHZV5 1000MW OSD:
F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433MHZ V5 1000MW Radio telemetry+MINI OSD +PDB
TOP Package:
F450+4 PCS BLHELI 30A +4 pairs self-locking1045 Propellers +4 PCS 2212 920KV motor

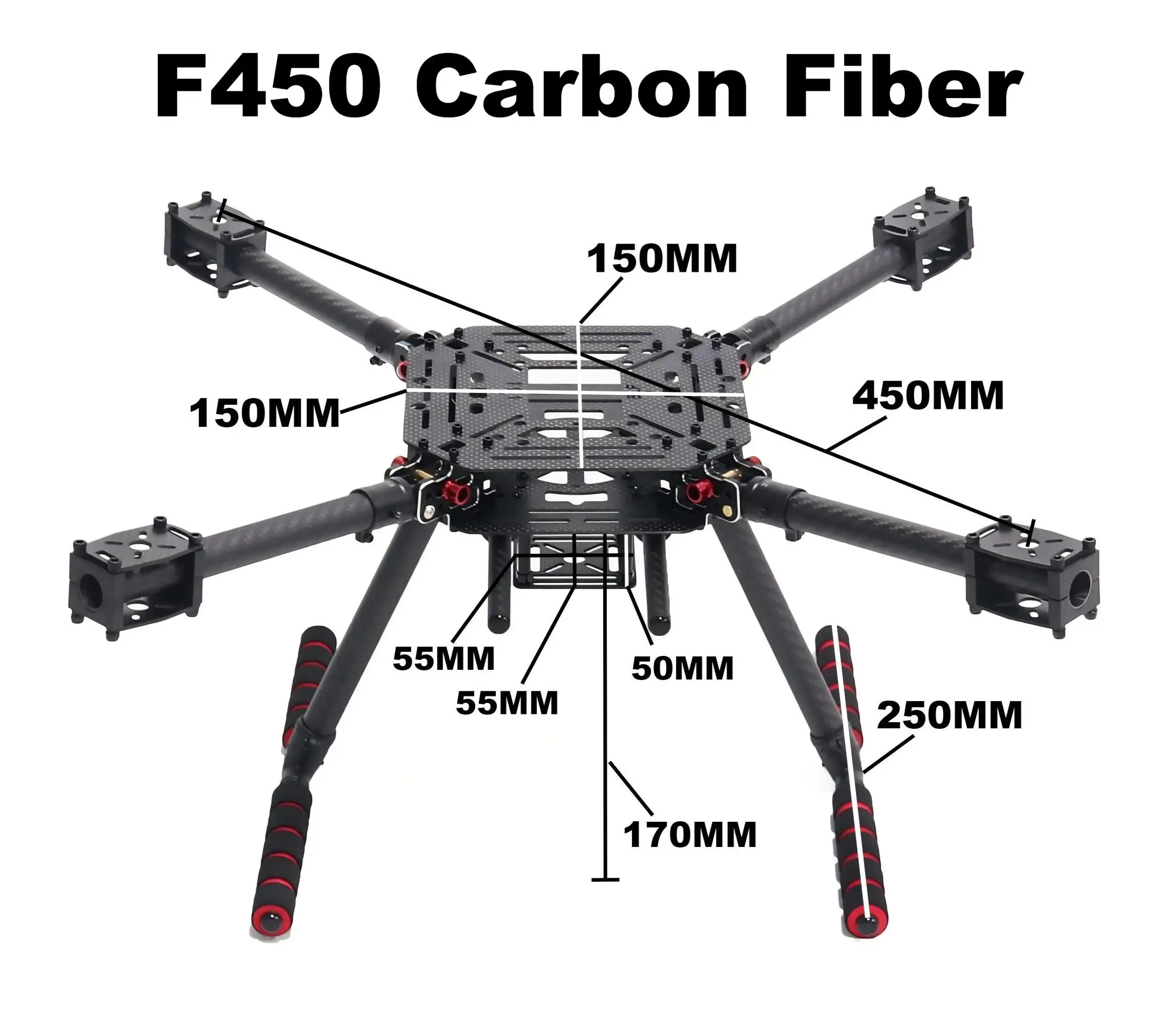

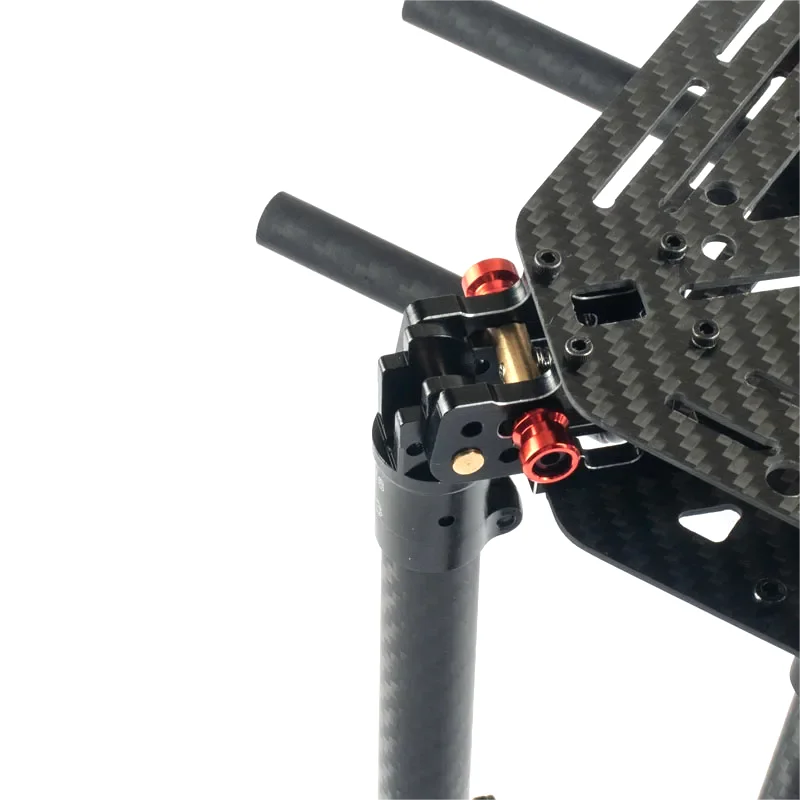

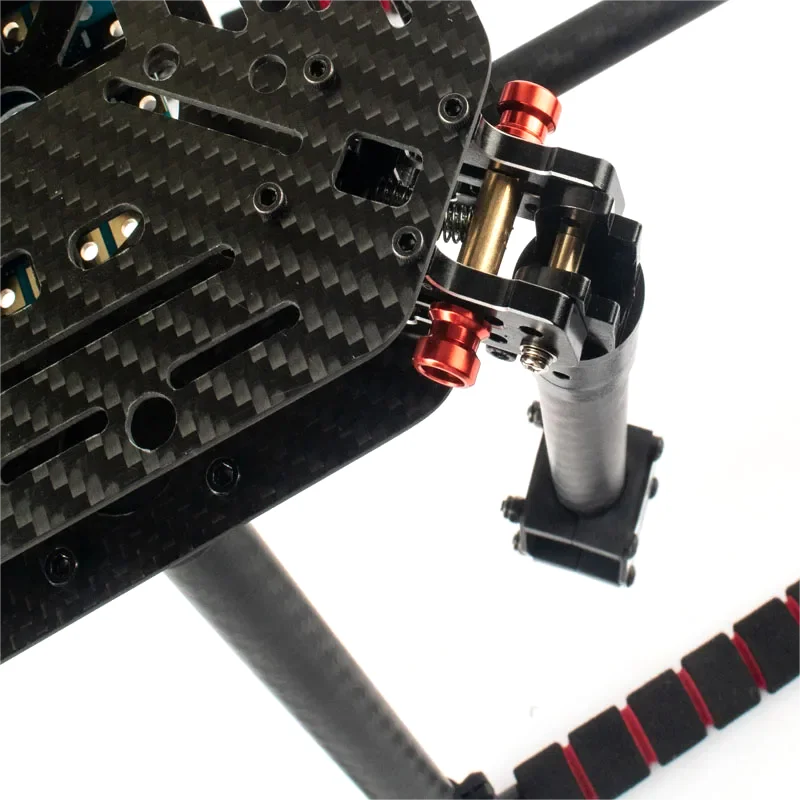

Product Description: 450 FRAME Wheelbase 4-Axle Frame for RC Quadcopter Drone
Overview
Elevate your drone-building experience with our 450 FRAME Wheelbase 4-Axle Frame, crafted from premium 3K pure carbon fiber for unmatched strength, durability, and lightweight performance. Ideal for RC quadcopter enthusiasts, this frame supports a wide range of applications, including FPV racing, aerial photography, and recreational flying.
Key Features
Material: 3K pure carbon fiber – Lightweight, strong, and resistant to wear.
Design: 450mm wheelbase 4-axis quadcopter frame, perfect for stability and agility.
Compatibility: Supports 2212/2216 motors and other standard quadcopter components.
Recommended Components (Not Included)
Motors: 4 x 2212 Brushless Motors – Powerful and efficient for smooth, responsive flight.
Electronic Speed Controllers (ESCs): 4 x 30A ESCs – Reliable and high-performance for precise control.
Propellers: 2 pairs of 1045 Propellers – Designed for excellent thrust and stability.
Battery: 5200mAh Battery – Provides long-lasting power for extended flight times.
Benefits
Lightweight yet robust design ensures optimal flight performance.
Easy to assemble and customize for beginners and advanced builders alike.
Durable carbon fiber construction withstands tough flying conditions.
Order Now!
Build your high-performance quadcopter with the 450 FRAME Wheelbase 4-Axle Frame. Add to cart today and take your flying to new heights!
Specifications
Material: 3K Pure Carbon Fiber
Wheelbase: 450mm
Frame Type: 4-Axis Quadcopter
A.Features
A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.
A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.
A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.
A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response. A6: All parameters can be programmed via using a transmitter, including default settings.
B. Productspecification
1045 Propellers
VTX1000 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DBantenna )
Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080
Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.
Package included:
1 x Upgraded Mista FPV Camera
This article explains how to connect the ESCs, motors and propellers to a autopilot. The Pixhawk is used as an example but other autopilots are connected in a similar way.
Connect the power (+), ground (-), and signal (s) wires for each ESC to the autopilot’s main output pins by motor number. Find your frame type below to determine the assigned order of the motors.
Pixhawk Outputpins (numbered). First 4 pins are colour-coded for connecting a Quadframe
Motor order diagrams
The diagrams below show motor order for each frame type. The numbers indicate which output pin from the autopilot shoould be connected to each motor/propeller. The propeller direction is shown in green (clockwise, CW) or blue (counter-clockwise, CCW)
Legend for motor-order diagrams
Quadcopter
Recognizing clockwise and counterclockwise propellers
The diagrams above show two types of propellers: clockwise (called pushers) and counterclockwise (called pullers). The most reliable to recognize the correct propeller type by its shape as shown below. The thicker edge is the leading edge which moves in the direction of rotation. The trailing edge is more radical scalloped and usually thinner.
How to install Motor?
