Foldable 450 Drone Rack
Product parameters:
Brand: B-CUBE
Wheelbase: 450mm
Weight: Approximately 585g
Material:3K Carbon Fiber
Thickness: Bottom plate 2mm, upper plate 2mm,
Arm diameter: 16MM
Landing diameter :16MM
Paddle: 1045 paddle
GPS Hold size: 30MM * 30MM(MAX)
Motor installation hole positions: 16mm-25mm (M3)
Battery: 3s
Recommended configuration:
Motor: 2212 920KV motor
ESC: B-CUBE 30A ESC PDB
Battery: 3S
Paddle: 1045 paddle
Video transfer: miniOSD B-CUBE VTX1000 1080 Camera

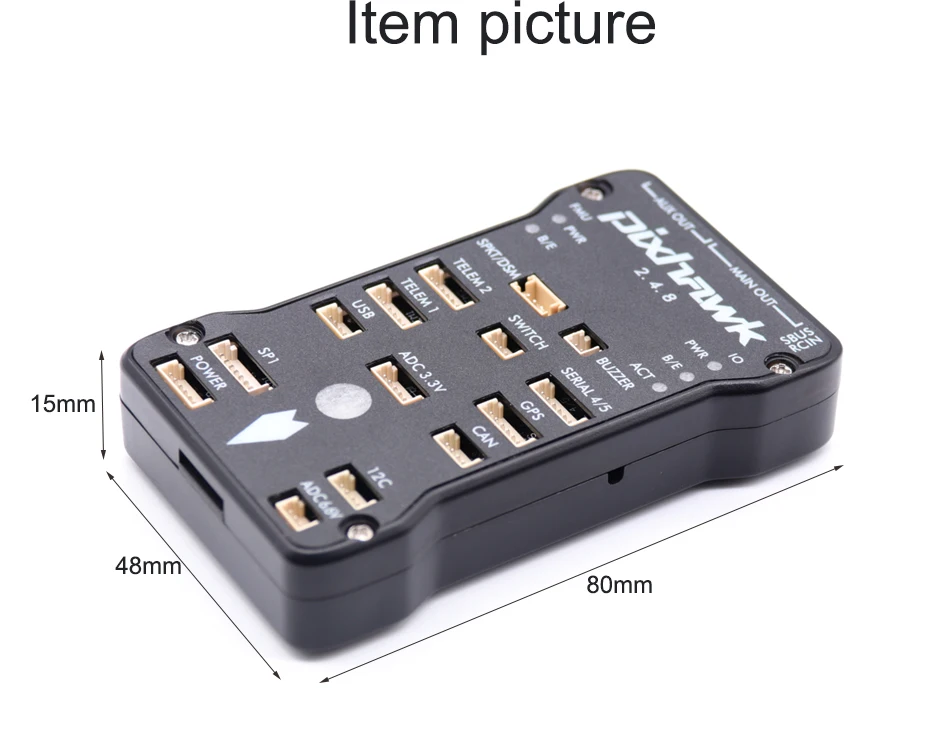

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Simple Package:
PIXHAWK 2.4.8+4G TF Card+Safety Button+Buzzer+M8N GPS+GPS Holder+3DR Power Module+Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
High Package:
PIXHAWK 2.4.8(white or black shell)+4G TF Card +Safety Button+Buzzer+PPM Encoder+I2C Expansion Board+RGB Led+OLED Screen+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber

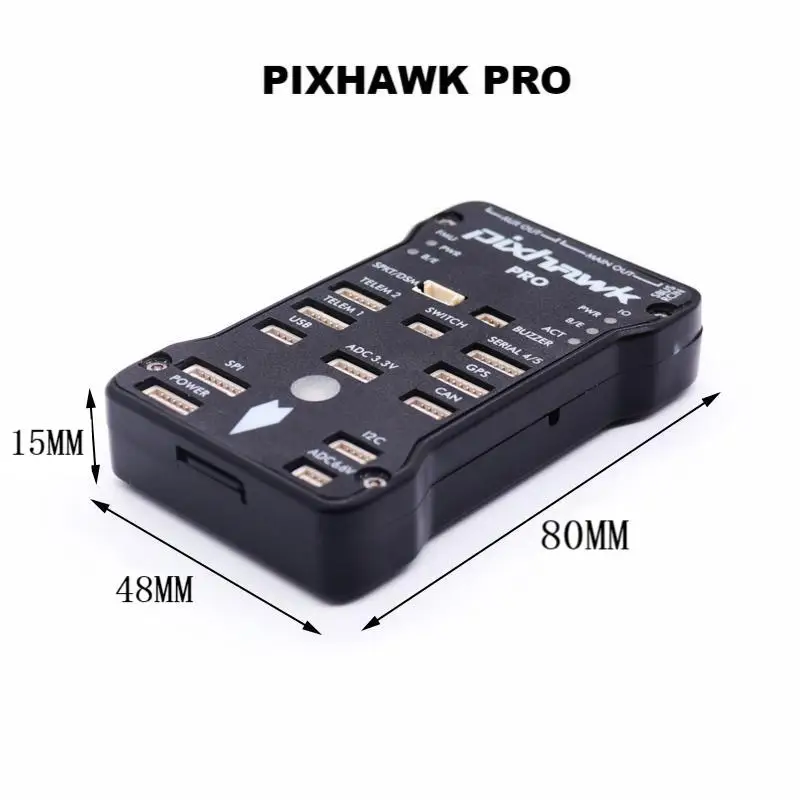

PIXHAWK PRO
Features:
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
10.TYPE-C USB port
11.GH1.25 port
Specifications:
Interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External TYPEC USB Interface
Simple package:
PIXHAWK PRO +M8N GPS+3DR Power Module+ GPS Holde + Shock Absorber+Safety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)
High package:
PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M8N GPS+3DR Power Module+ GPS Holder+ Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)
PIXHAWK 6C PRO
The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.
The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Key Design Points
High performance STM32H743 Processor with more computing power & RAM
Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
New cost-effective design with low-profile form factor
Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Technical Specification
Processors & Sensors
FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611
Electrical data
Voltage Ratings:
Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Current Ratings:
TELEM1 Max output current limiter: 1.5A
All other port combined output current limiter: 1.5A
Mechanical data
Dimensions: 85 * 45 * 10 mm
Weight (Plastic Case) : 33g
Simple package:
PIXHAWK 6C PRO +M8N GPS+6C PM02 V3.2 Power Module+ GPS Holde + Shock Absorber+Safety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)
High package:
PIXHAWK 6C PRO+I2C+RGB LED+OLED+M8N GPS+6C PM02 V3.2 Power Module+ GPS Holder+ Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)
M8N GPS
Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 19 19mm
Resolution: 960 * 1080
Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.
Package included:
1 x Upgraded Mista FPV Camera
BLHELI ESC:A.Features
A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.
A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.
A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.
A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response.
A6: All parameters can be programmed via using a transmitter, including default settings.B. Productspecification
2212 920KV MotorModel: 2212 Brushless Motor
KV value: KV 920
Support lithium battery: 3S-4S LIPO
Adapt to the blades: It is recommended to use 9443 carbon fiber propellers, three-blade propellers, two-blade propellers and white
Self-locking propeller, F450 F550 is recommended to be used with 9443 propeller
Types:Reverse/Orthodontic
Colour:Silver+black/silver
Material:Metal
Package Contents:
1 x brushless motor
LiteRadio 3 Radio Transmitter
LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.
- 8 channels in total.
- USB Joystick support for most practice simulators.
- Nano module bay for external TX module.
- Newly designed joystick gimbal for longer usage life.
- Support BETAFPV Configurator for updating, configuring, and tuning.
- Provide ExpressLRS 2.4G protocol version .
- Built-in 2000mAh battery and USB charge supported.
5.8G VTX OTG Receiver
Note:
If you use a 2.4G remote control, some remote controls may interfere with the 5.8G signal after increasing the frequency through the 2.4G frequency band. Using a high-frequency band frequency of 5945MHz for video transmitters can avoid this problem. Or keep the video receiver away from the 2.4G remote control.
Features:
1.150CH 5.8Ghz analog signal, 1500 scans cover all bands. 2.Resolution 640*480 30fps. 3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission. 4.Can display frequency spectrum, to check the signal strength of antenna or transmitter. 5.Support dual display on smartphone, can be used as VR goggles. 6.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.
Descriptions:
1.Support OTG cable connect to android smartphone or tablet. 2.Single Antenna FPV receiver for Android Tablet PC Monitor.
Specifications:
Frequency: 5645MHz-5945MHz Resolution: 640480 30fps Working Current: USB 5V 190mA Connector: RP-SMA USB: Type-C Working Temp.: -10°~65° Size: 50MM30MM Weight: 26g
Working Methods
Install APP:
1.Download apk app from here,https://github.com/BCUBE-RC/VTX-OTG/ 2.Use OTG cable connect with receiver 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.
PC:
1.Use usb cable to connect it with PC. 2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation. 3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.
AV:
1.Use 4P cable (should DIY by player), 5V power input. 2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.
Note:
1.Do not support IOS system. 2.Some smartphones should open the otg function before use. 3.Some players have complained that it has the issue of flicker or short distance. After testing in open area, the reason has been found to be its high scanning accuracy,that the transmitted frequency is reflected by wall indoors and make the real frequency detected by receiver higher than it should be. So it is quite important to operate it in an open area and keep the receiver and transmitter more than 30m.
Package Included:
1 x 5.8Ghz 150ch Receiver 1 x Type-C OTG cable 1 x Mushroom head RX Antenna
ELRS 2.4G Receiver RX
Product Description:
ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.
SPECIFICATIONS 1
●Brand:B-CUBE
●Model:ELRS 2.4G NANO
●RF Freq:2.4Ghz
●IC:SX1281+ESP8285
●TX Power:100mW
●Color:Black
●Connector:IPEX 1
●Input Power:3.6-5.5V
●Weight:0.4g(receiver only)
●Size:11mm*18mm
●Firmware: BETAFPV Nano 2400 RX 3.3.0
Package Included:
Nano Receiver x 1
T type receiver antenna x 1
Heat shrink tube x 1
30AWG Silicone Wire x 4
1045 Propellers
